Reliable Single-acting HD Truck 4 Stage Hydraulic Cylinder for Tipper

Introducing, the Junfu hydraulic’s Single-acting HD Truck 4 Stage Hydraulic Cylinder for Tipper, a reliable and durable solution for all your heavy-duty truck hydraulic needs. Whether you're using it for construction, agriculture, mining, or any other industry where heavy lifting is a daily task, this hydraulic cylinder is built to handle the toughest jobs with ease.

With four stages of hydraulic power, this cylinder can extend to the perfect height for tipping your truck bed, making it easier than ever to unload materials or equipment. The single-acting design ensures smooth and efficient operation, while the heavy-duty construction guarantees long-lasting performance even in the harshest conditions.

Manufactured by Junfu hydraulic, a trusted brand in the industry known for their high-quality hydraulic products, this cylinder is designed to meet and exceed all your expectations. Made from top-grade materials and precision-engineered for optimal performance, you can trust that this hydraulic cylinder will get the job done right every time.

Installation is quick and easy, with a simple mounting process that doesn't require any special tools or equipment. Once in place, the cylinder operates seamlessly, providing reliable lifting power whenever you need it. Plus, the compact design ensures that it won't take up too much space on your truck, leaving more room for your payload.

The Junfu hydraulic’s Single-acting HD Truck 4 Stage Hydraulic Cylinder for Tipper is also built with safety in mind, featuring a built-in pressure relief valve to prevent overloading and ensure maximum operator protection. This added level of security gives you peace of mind knowing that your equipment and crew are safe at all times.

Whether you're a professional contractor, a farmer, or a truck owner looking to upgrade your hydraulic system, the Junfu hydraulic’s Single-acting HD Truck 4 Stage Hydraulic Cylinder for Tipper is the perfect choice. Trust in the reliability and durability of Junfu hydraulic products and experience the difference for yourself. Upgrade your truck's hydraulic system today and make your lifting tasks easier and more efficient than ever before

Products Description

Technical Specs

Type	Cylinder diameter - mm	Rated pressure - MPA	Installation distance - mm	Stroke - mm	Total length - mm	Weight - kg
FC129-3-3220	129	22	343	3220	1387	191
FC129-4-3480	129	22	343	3480	1218	178
FC137-3-3830	137	22	343	3830	1640	244
FC137-3-4280	137	22	343	4280	1860	268
FC137-4-4280	137	22	343	4280	1455	236
FC157-4-3830	157	22	343	3830	1350	260
FC157-4-4650	157	22	343	4650	1555	280
FC157-4-5000	157	22	343	5000	1650	300
FC157-5-3830	157	22	343	3830	1170	230
FC157-5-4650	157	22	343	4650	1275	245
FC179-4-4280	179	22	343	4280	1480	235
FC179-4-5390	179	22	343	5390	1755	360
FC179-4-6100	179	22	343	6100	1940	390
FC179-5-3830	179	22	343	3830	1170	265
FC179-5-4650	179	22	343	4650	1282	283
FC179-5-5000	179	22	343	5000	1405	305
FC179-5-5800	179	22	343	5800	1570	350
FC179-5-6300	179	22	343	6300	1655	360
FC179-5-7300	179	22	343	7300	1850	400
FC191-5-5780	191	22	343	5780	1530	273
FC191-5-6500	191	22	343	6500	1670	410
FC191-5-6800	191	22	343	6800	1735	738
FC191-5-7300	191	22	343	7300	1835	458
FC191-54-6100	191	22	343	6100	1955	273
FC196-4-6180	196	22	343	6180	1940	479
FC196-5-6350	196	22	343	6350	1710	450
FC202-4-6100	202	22	343	6100	1935	479
FC202-5-6800	202	22	343	6800	1765	465
FC202-6-7000	202	22	343	7000	1570	440
FC214-5-7300	214	22	343	7300	1900	530
FC214-7-7600	214	22	343	7600	1455	450
FC240-5-9030	240	22	343	9030	2270	820

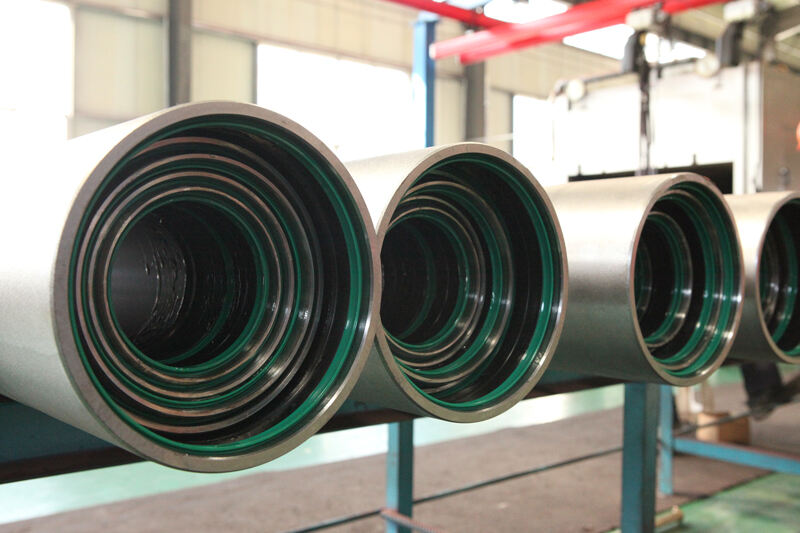

Pipe dia: 202/179/157/137/118/99/80 240/214/191/169/149/129/110/90/70

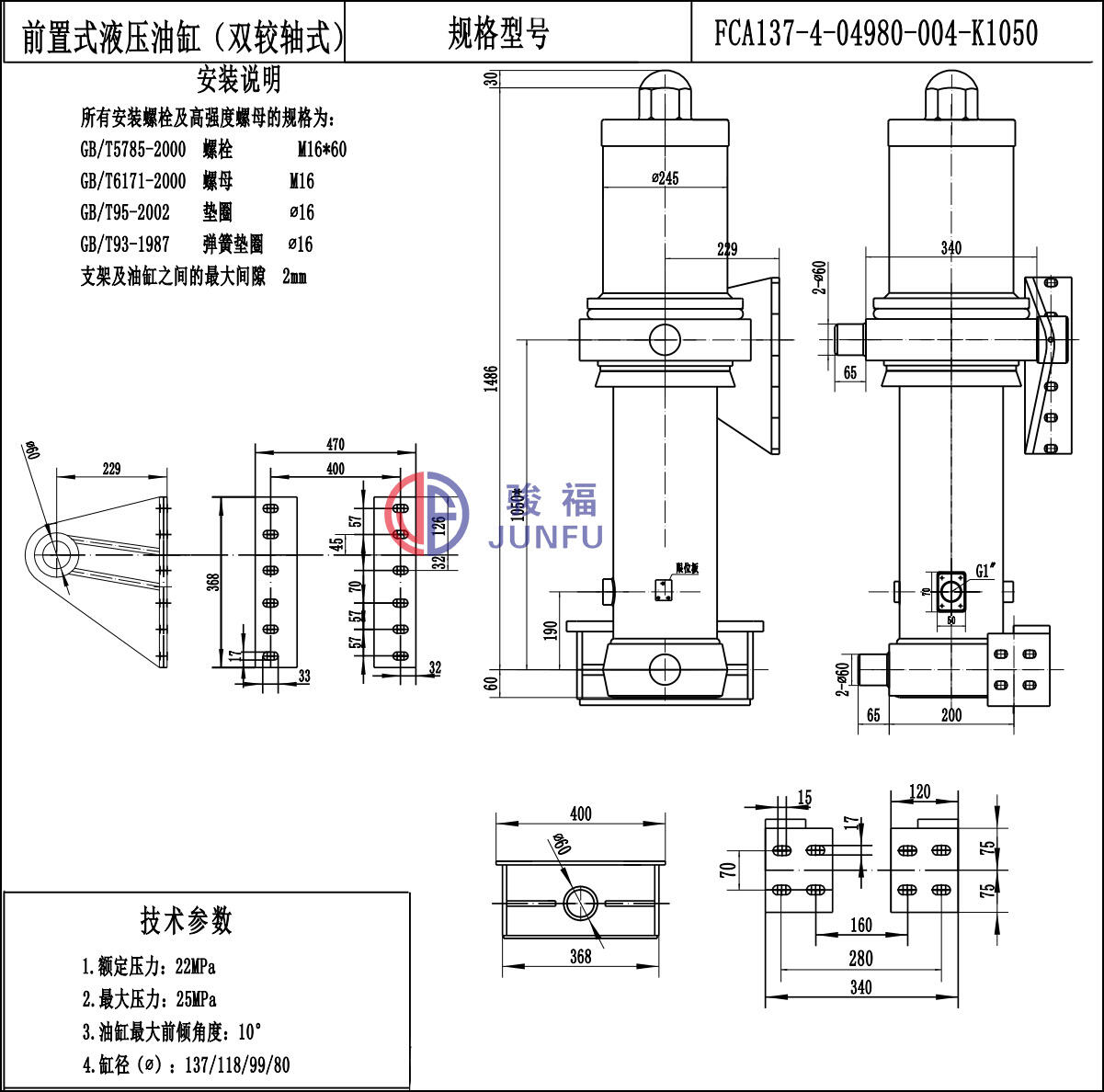

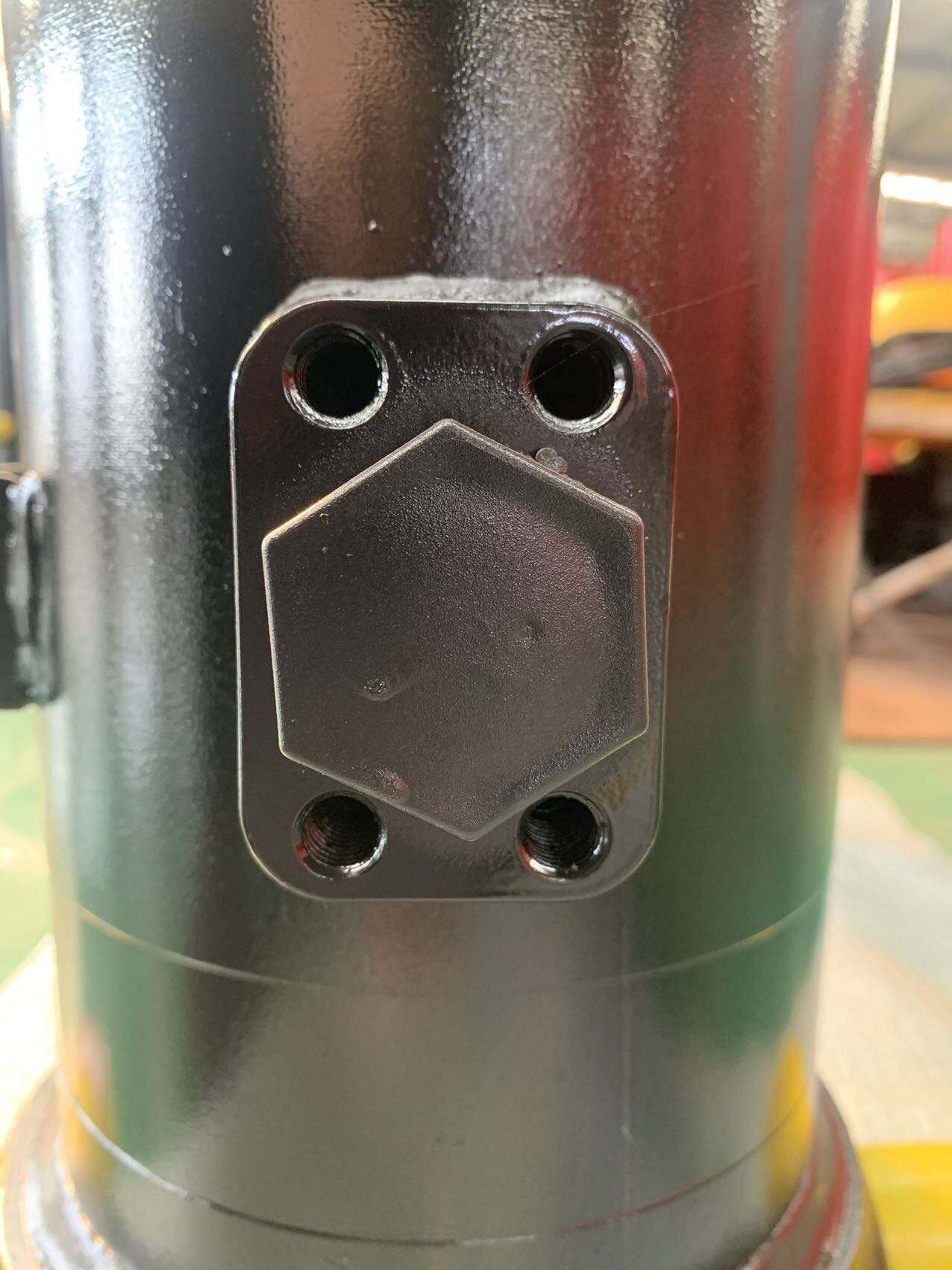

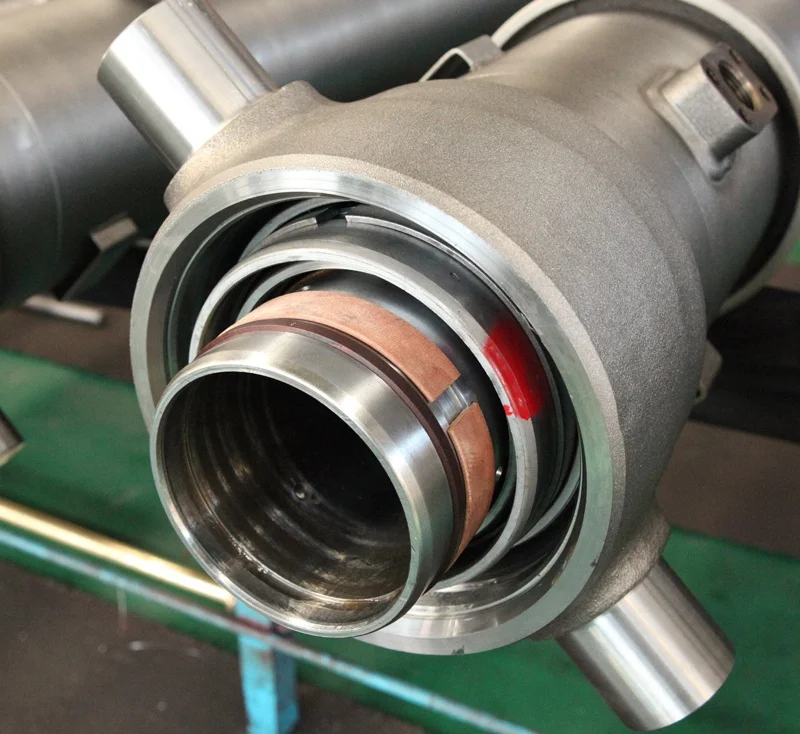

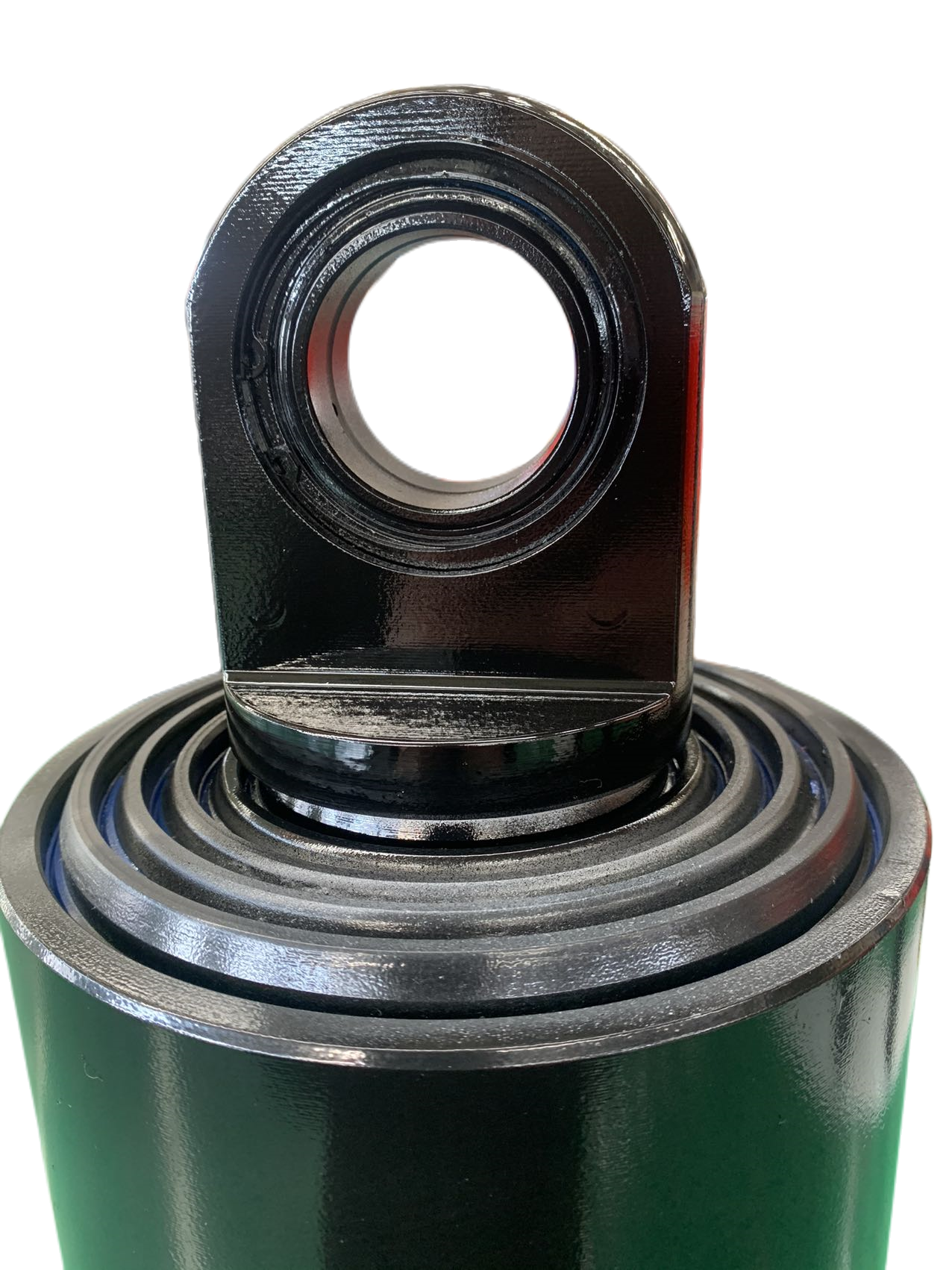

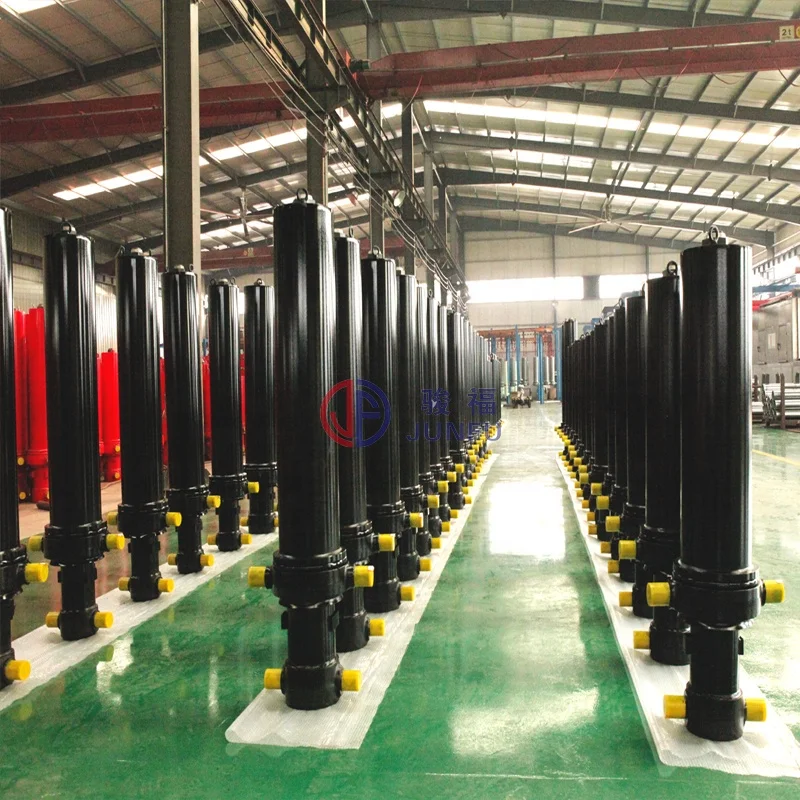

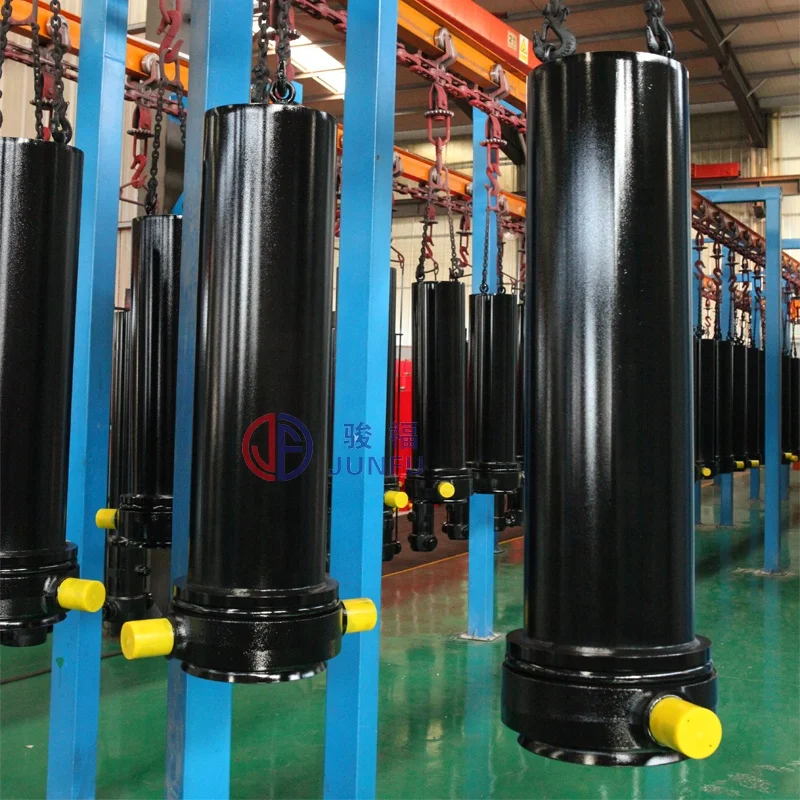

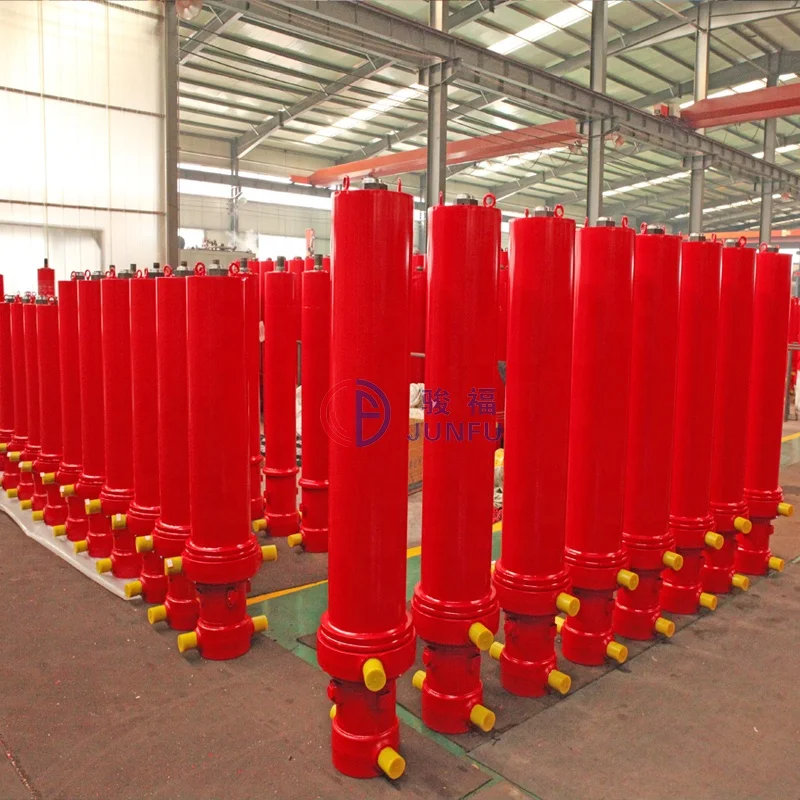

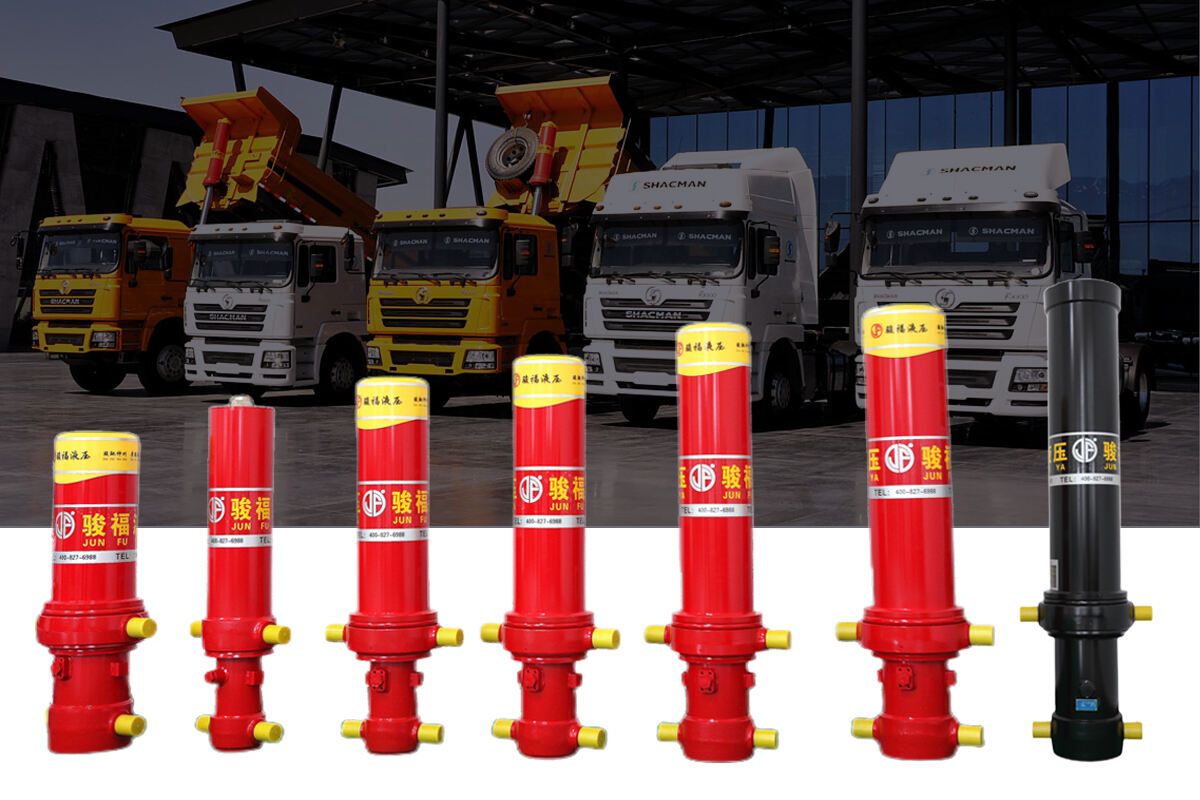

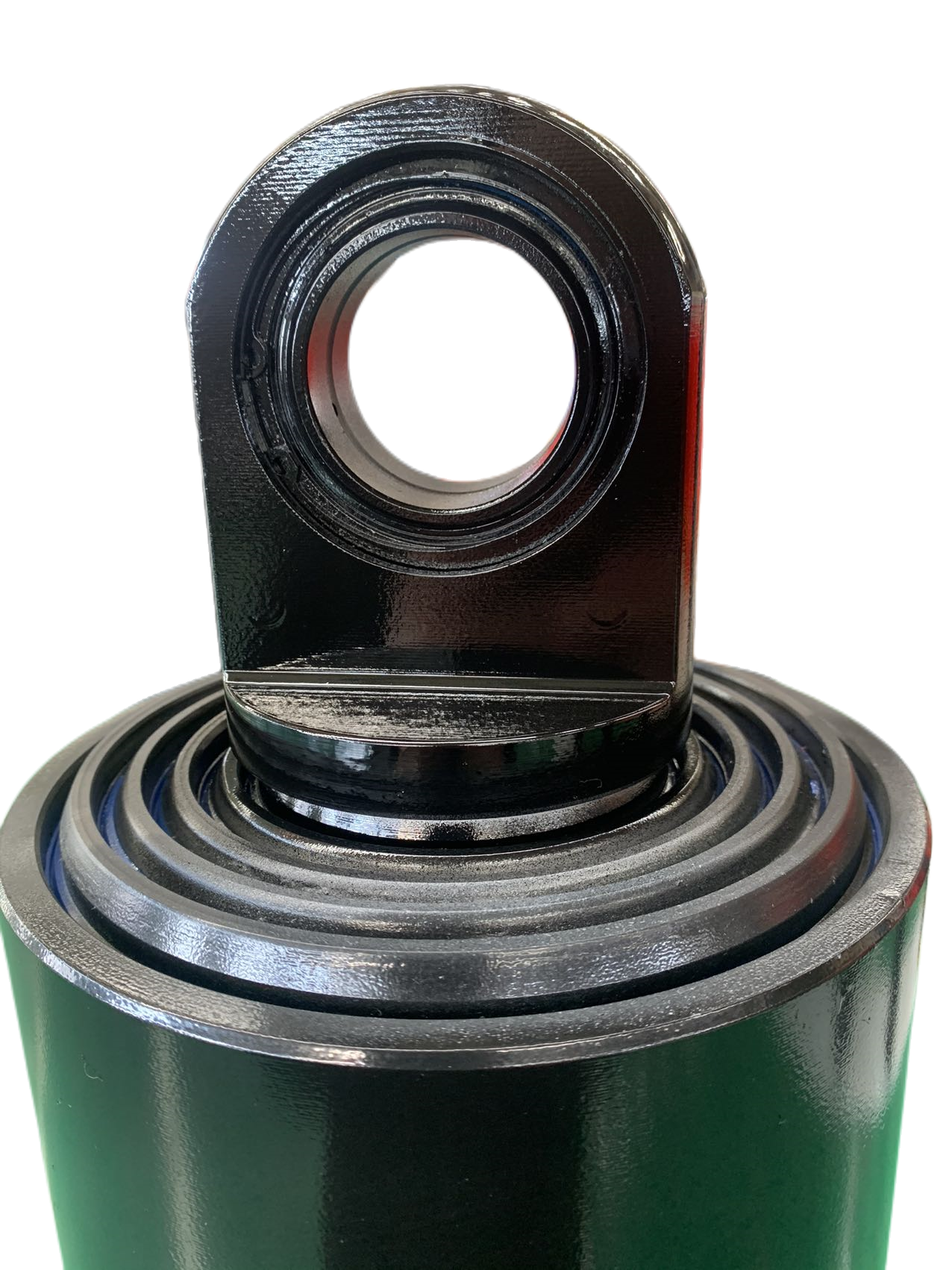

Details Images

Our Advantages

1. Safer Junfu hydraulic cylinder adopts excellent structural design and new material application, which can withstand the harshest working conditions and continue to work stably without disconnection, ensuring the safety of drivers and vehicles, and creating the most valuable safety for users
2. faster unloading
Junfu series oil cylinder adopts excellent structural design to improve the unloading speed of the oil cylinder
3. higher lift frequency
Junfu series oil cylinders are suitable for all-weather short barge and high-frequency operations, with stable performance, extremely low failure rate, increasing the number of transfers and reducing downtime
4. Greater adaptability to the environment

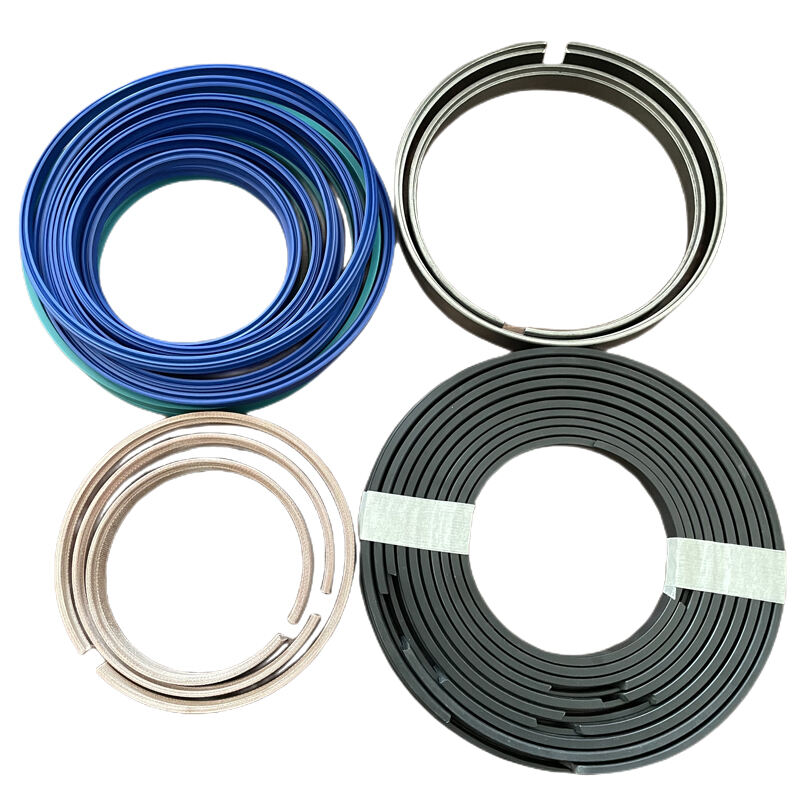

Junfu series oil cylinder adopts innovative sealing technology and new material application, which can adapt to the temperature range of -40~110ºC, and can achieve excellent performance in high temperature and low temperature environment operation
5. lighter
Compared with other products of the same series, Junfu series cylinders reduce the dead weight by 15%~20%, and increase the lifting force by 10%~15%
6. Greater lifting force
Compared with other products of the same series, the lifting force of junfu series cylinders is increased by 10%~15%. More lift, more load, more profit! Lighter dead weight, greater lifting force, more lightness

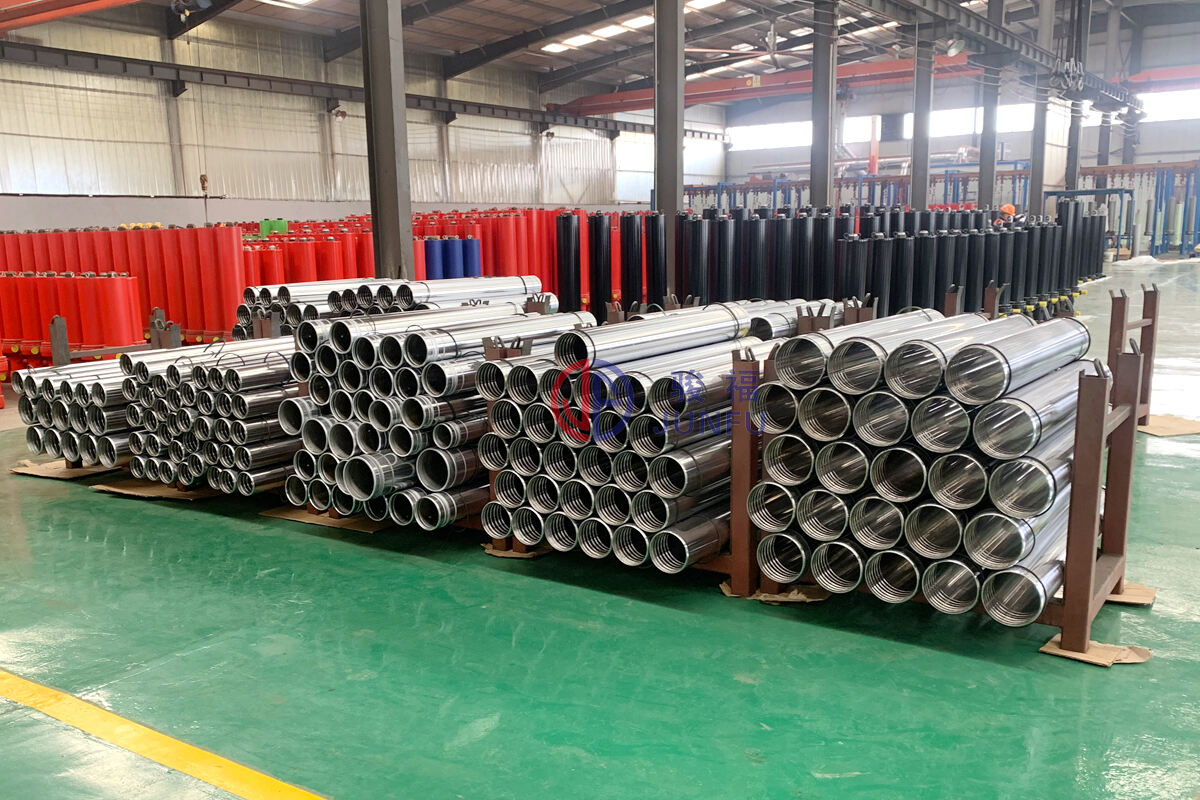

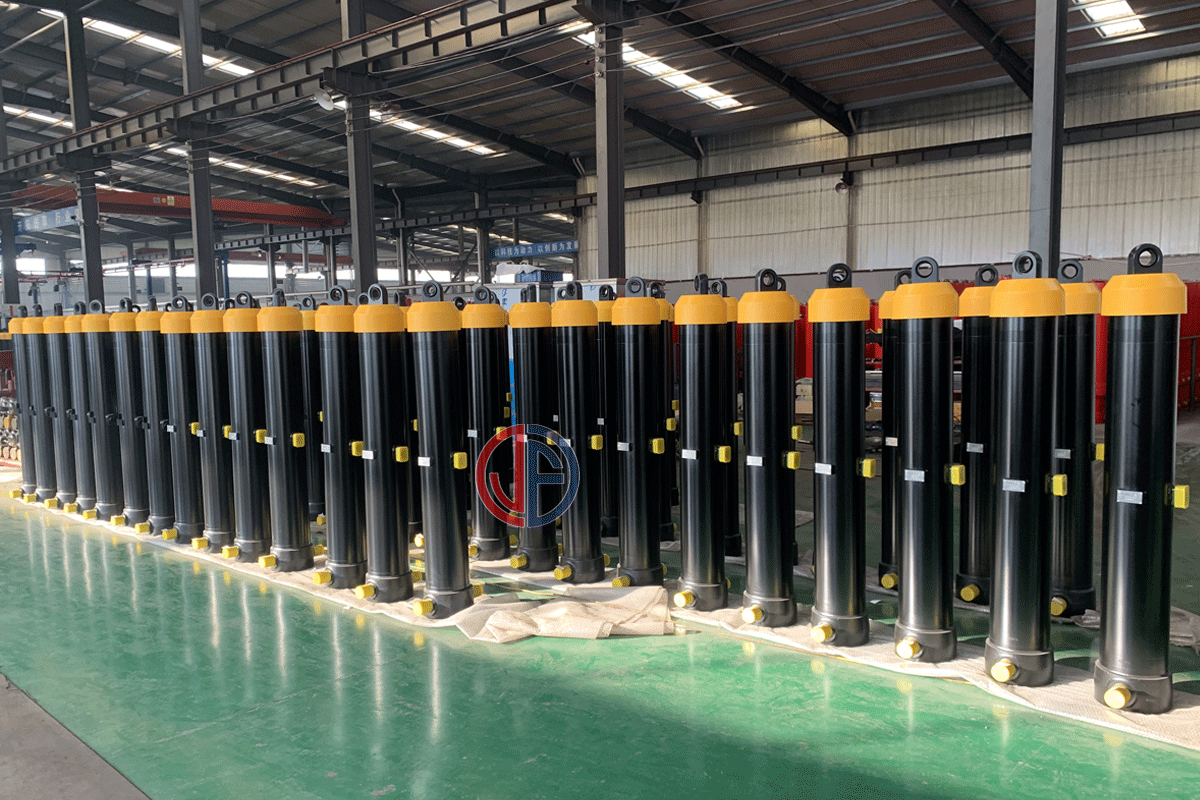

Company Profile

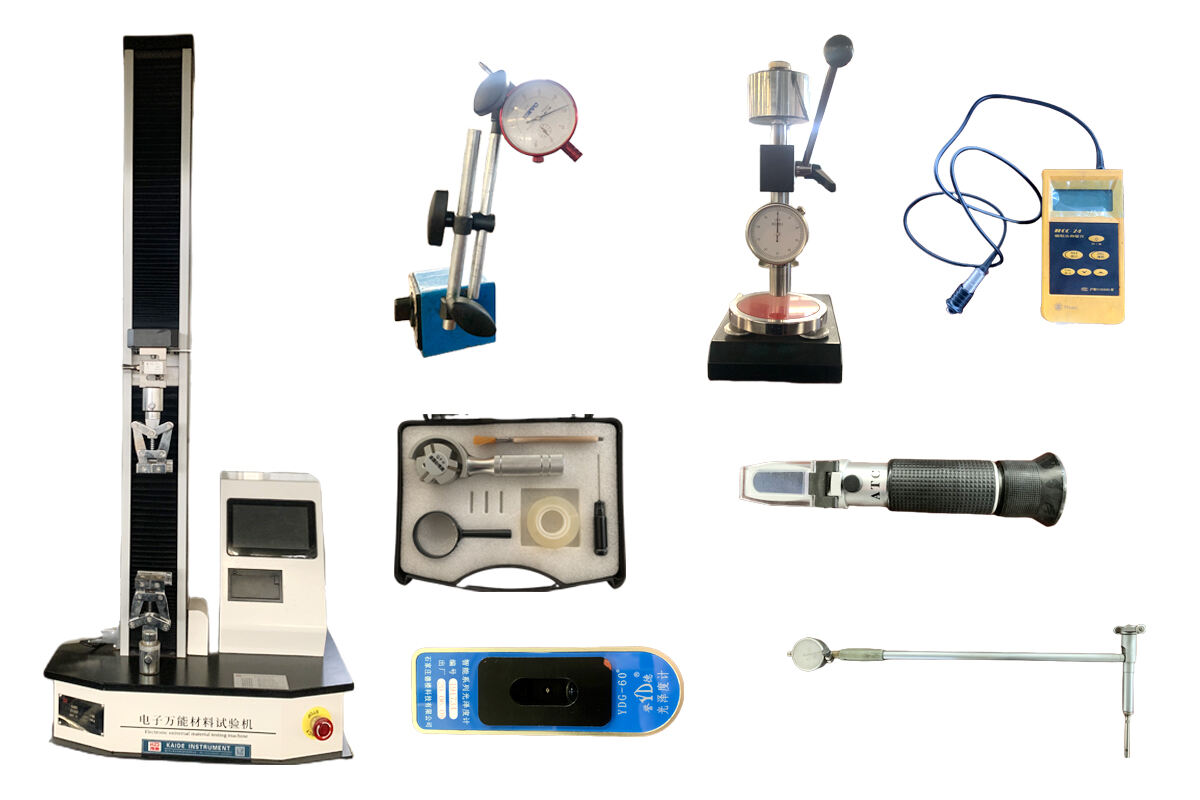

Well Quality Management system

1. Trial Operation Test
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test
Every piece hydraulic cylinder will be tested before deliver

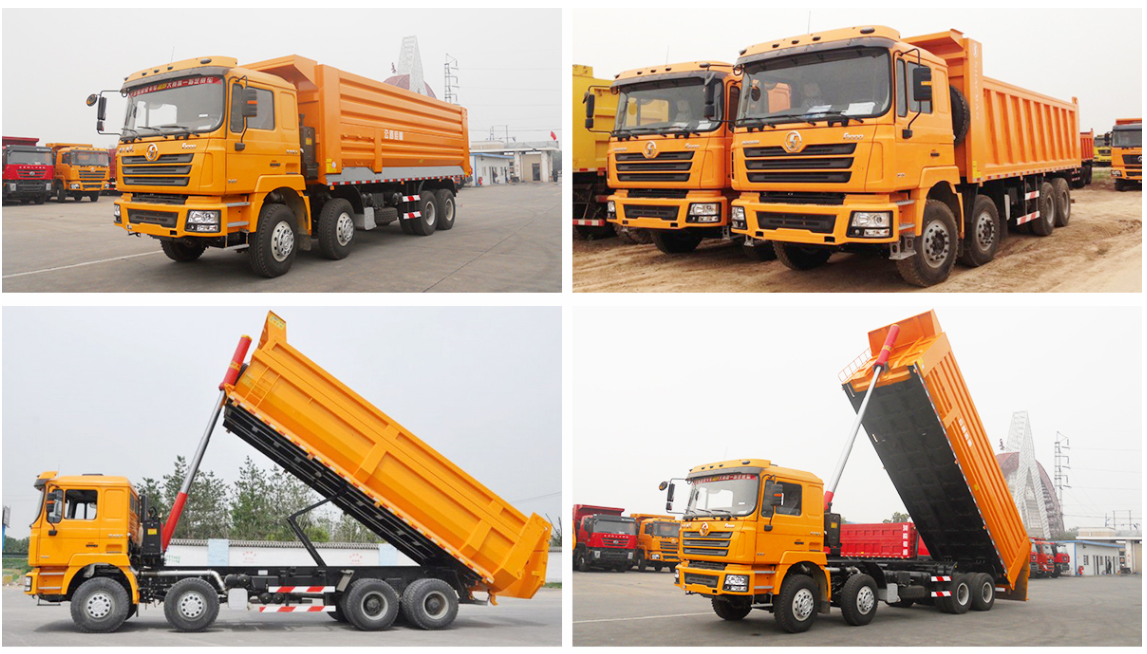

Our customer

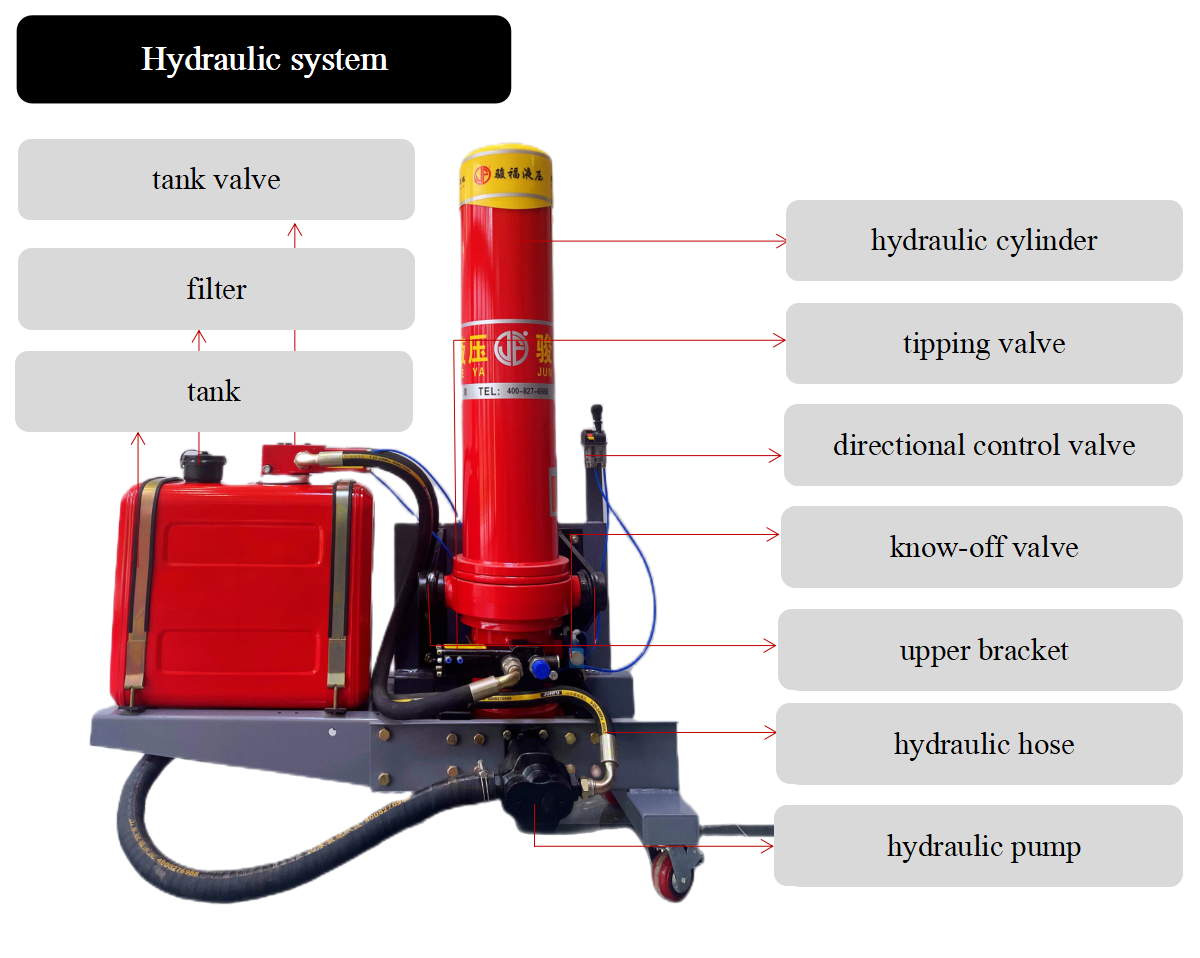

Full set Hydraulic System is available as blew

FAQ

Q1: How about the after-sale service
One year warranty, full life service

Q2: What's your cylinder's advantages
The cylinders are manufactured by advanced equipments and made under strictly quality control processing
The steel is tempered and all raw materials are good quality from world famous companies
Competitive price

Q3: When your company be established
Our company be established in 2002, professional manufacturer of hydraulic cylinders more than 20 years
We had passed IATF 16949:2016 Quality control system, ISO9001, CE

Q4: How about the delivery time
30 days approximately
