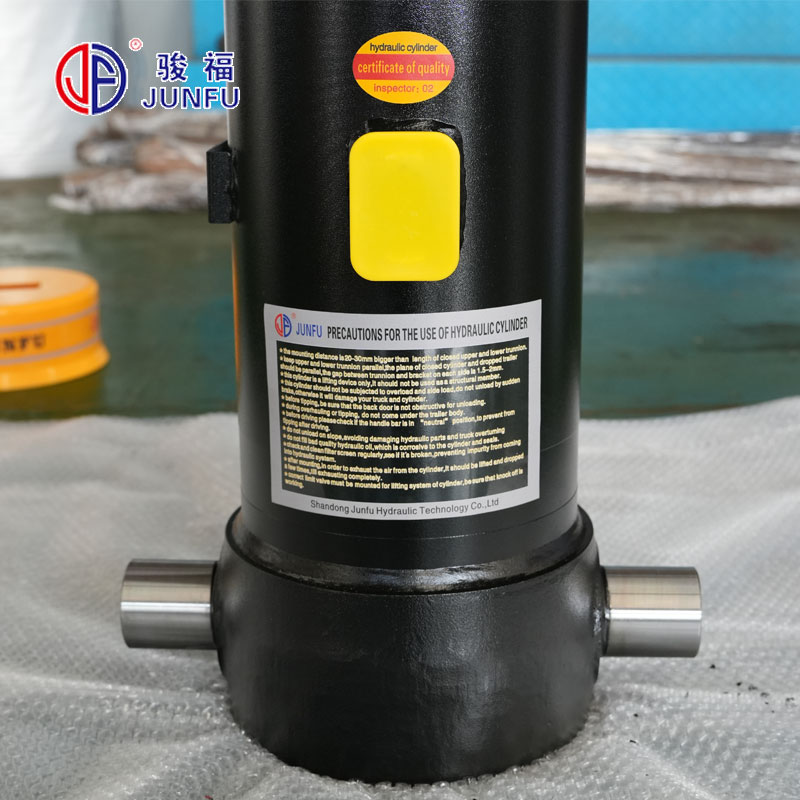

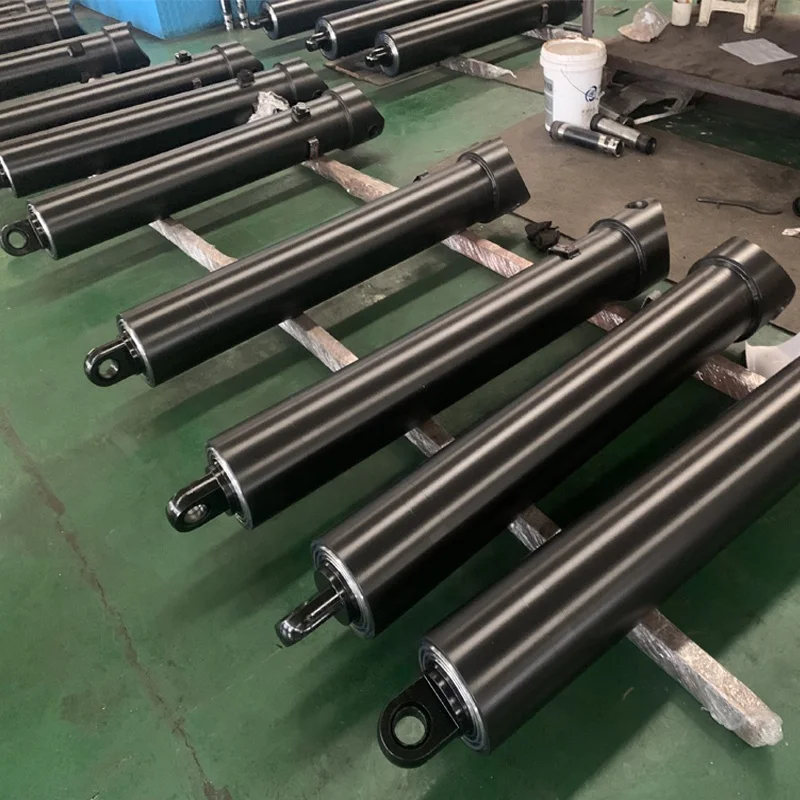

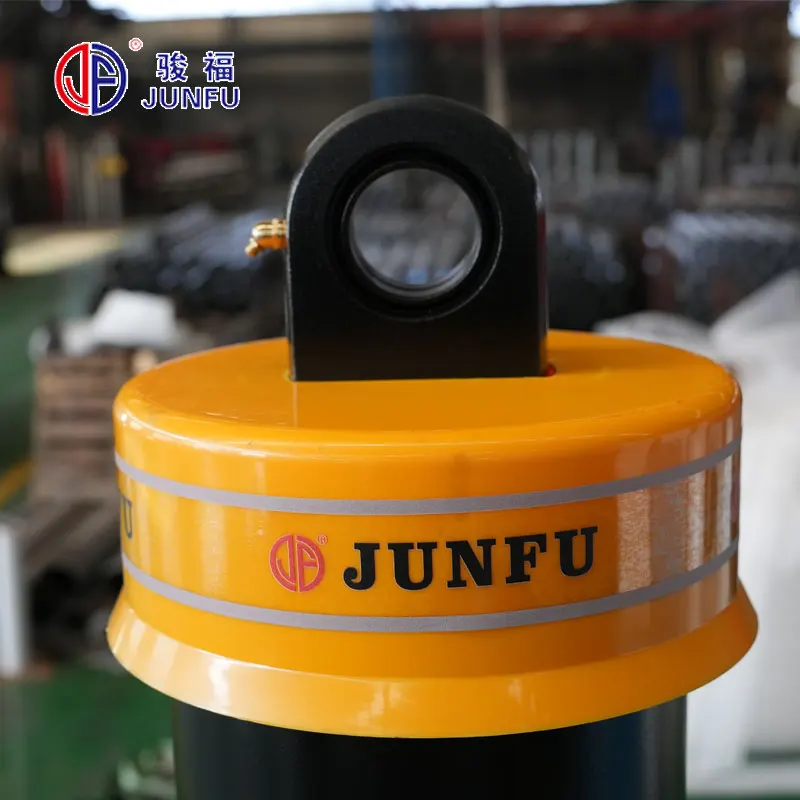

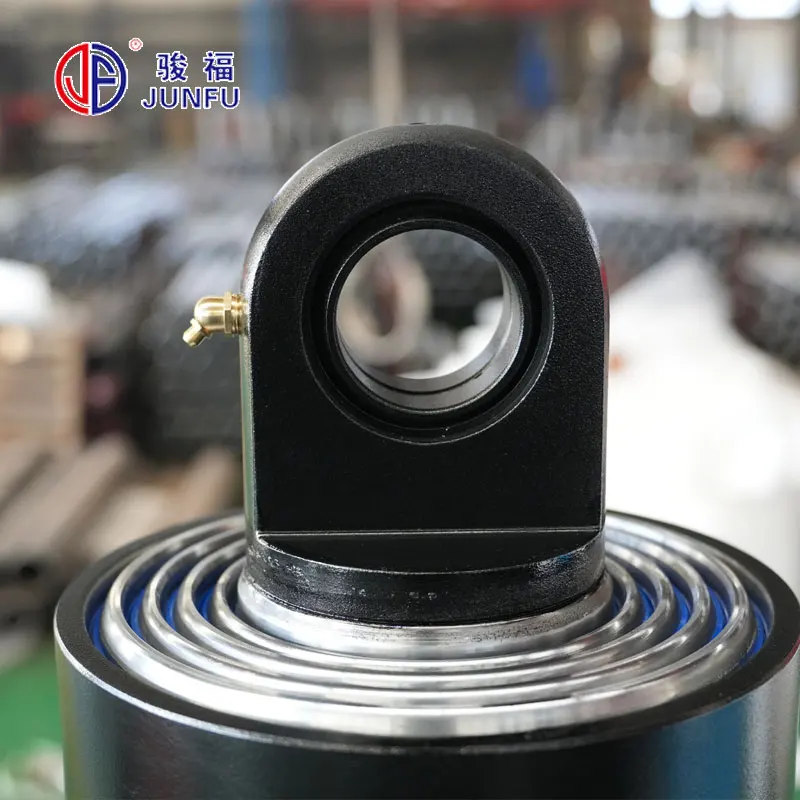

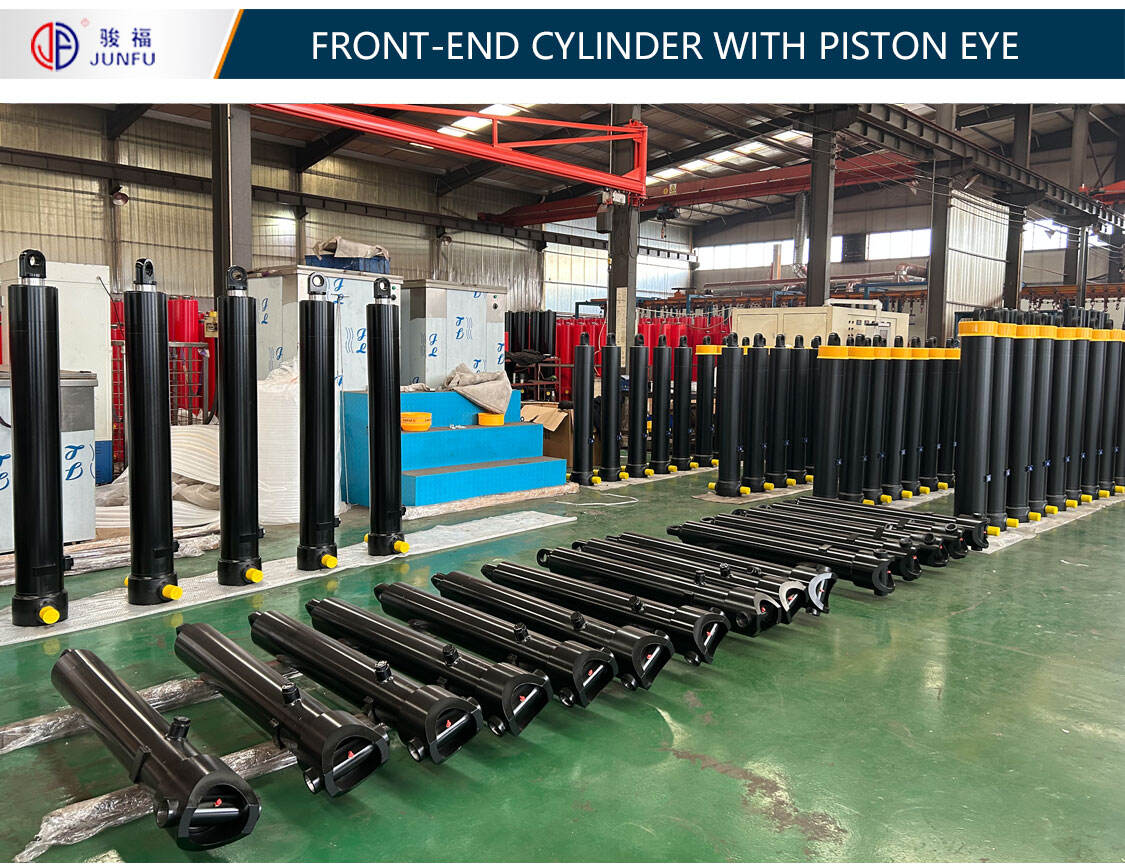

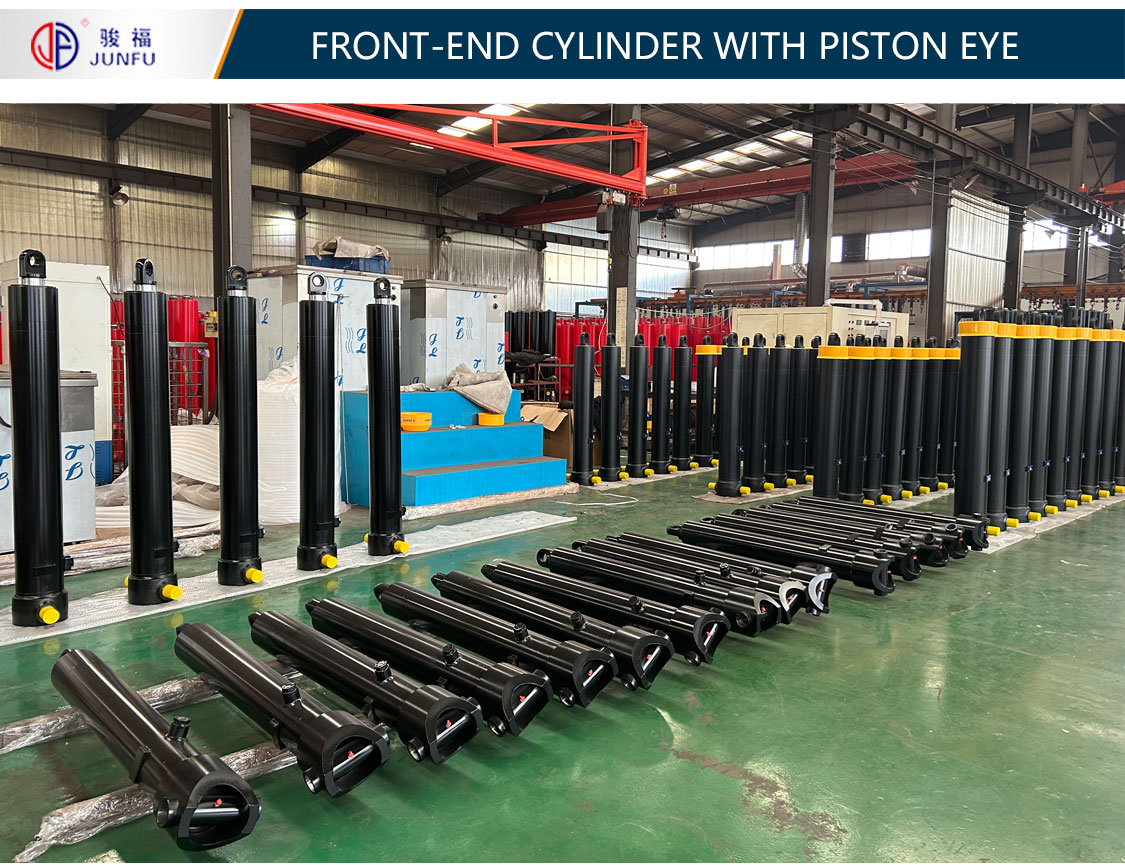

JF Double/single Acting Stainless Steel Hydraulic Cylinders for Dump Truck Lifting Equipment
Description
The Junfu hydraulic’s JF Double/single Acting Stainless Steel Hydraulic Cylinders are the ideal choice for dump truck lifting equipment. These durable cylinders are specifically designed to withstand the demanding conditions of heavy-duty applications, making them a reliable and efficient choice for your hydraulic system.
Built with high-quality stainless steel, these cylinders are resistant to corrosion and wear, ensuring long-lasting performance even in harsh environments. The double/single acting design allows for both pushing and pulling forces, providing versatile functionality for a wide range of lifting tasks.
With a sleek and compact design, these hydraulic cylinders are easy to install and integrate into your dump truck lifting equipment. The precision engineering guarantees smooth and efficient operation, allowing you to lift heavy loads with ease and precision.
The Junfu hydraulic’s JF Double/single Acting Stainless Steel Hydraulic Cylinders are designed for maximum strength and durability, capable of handling high-pressure hydraulic applications without compromising on performance. Whether you're lifting heavy loads on a construction site or transporting materials in a warehouse, these cylinders deliver consistent and reliable operation for your hydraulic system.
With a trusted brand like Junfu Hydraulic, you can rely on the quality and reliability of these hydraulic cylinders. Backed by years of experience and expertise in the industry, Junfu Hydraulic is a leading manufacturer of hydraulic components known for their innovative designs and superior performance.
Upgrade your dump truck lifting equipment with the Junfu hydraulic’s JF Double/single Acting Stainless Steel Hydraulic Cylinders and experience the difference in efficiency and reliability. Invest in quality and performance with these durable cylinders that are built to last and deliver exceptional results for all your lifting needs
Send detailed information and offer customized services
Type |
Cylinder Dia - mm |
Rated Pressure - MPA |
Installation Distance - mm |
Stroke - mm |
Total Length - mm |
Weight - kg |
FEA129-4-4320 |
129 |
20 |
1356 |
4320 |
1482 |
144 |
FE149-4-04940 |
149 |
20 |
1529 |
4940 |
1639 |
184 |
FEA157-4-5540 |
157 |
20 |
1649 |
5540 |
1764 |
223 |
FE169-5-5355 |
169 |
20 |
1365 |
5535 |
1480 |
240 |
FE169-5-5780 |
169 |
20 |
1559 |
5780 |
1674 |
250 |
FE169-5-6180 |
169 |
20 |
1559 |
6180 |
1674 |
244 |
FE169-5-6380 |
169 |
20 |
1612 |
6380 |
1727 |
246 |
FE179-5-5550 |
179 |
20 |
1427 |
5550 |
1542 |
249 |
FE179-5-5881 |
179 |
20 |
1550 |
5881 |
1690 |
255 |
FE191-5-06180 |
191 |
20 |
1527 |
6180 |
1647 |
290 |
FEA191-5-7130 |
191 |
20 |
1732 |
7130 |
1852 |
323 |
FE191-5-06134 |
191 |
20 |
1675 |
6134 |
1675 |
352 |
Pipe dia:202/179/157/137/118/99/80 240/214/191/169/149/129/110/90/70 | ||||||
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test
30% deposit, 70% balance to be paid before delivery
Q2: What's your cylinder's advantages
The cylinders are manufactured by advanced equipments and made under strictly quality control processing
The steel is tempered and all raw materials are good quality from world famous companies
Competitive price
Q3: When your company be established
Our company be established in 2002, professional manufacturer of hydraulic cylinders more than 20 years
We had passed IATF 16949:2016 Quality control system, ISO9001, CE
Q4: How about the delivery time
30 days approximately
Q5: How about the cylinder's quality gurantee
One year
